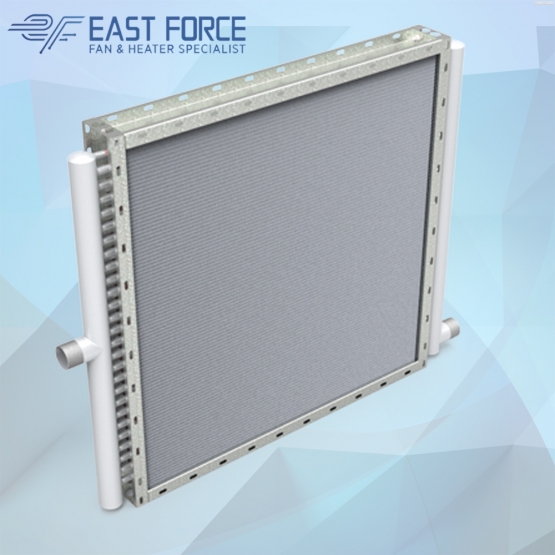

Multi Rows / Single Pass

Finned Heating

Material of Construction :

  • Tube                : Copper (15.9 mm OD x 1.2mm Thickness)
  • Fin                   : Aluminium Corrugated Single Wave Pattern (0.2 mm Thickness)
  • Fins Spacing      : 3 mm
  • Frame              : G.I. Sheet (1.5 mm Thickness)
  • Header             : Carbon Steel BSPT Screwed Type Connection
