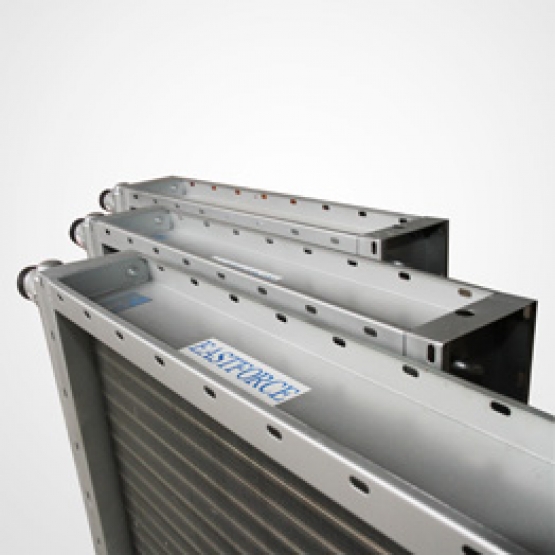

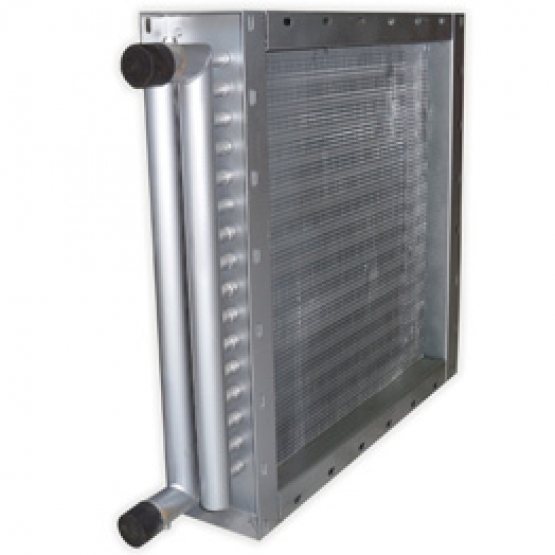

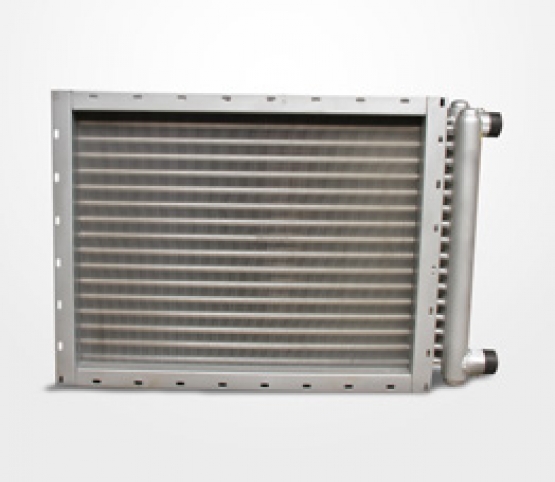

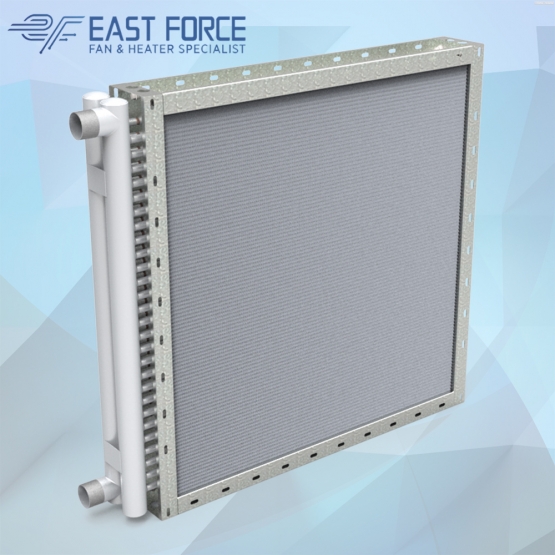

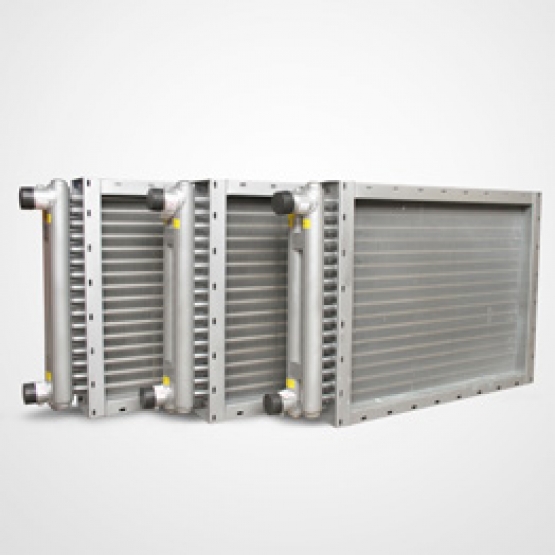

Multi Rows / Multi Pass

Finned Heating

Material of Construction :

    • Tube                : Copper (dia.5/8” x 1.2mm Thickness)

                                                  no welded U-bend

    • Fin                   : Aluminium Corrugated Single Wave Pattern 0,2mm Thickness
    • Fins Spacing      : 3mm pitch
    • Frame              : G.I. Sheet (1.5 mm Thickness)
    • Header             : Carbon Steel BSPT Screwed Type Connection
