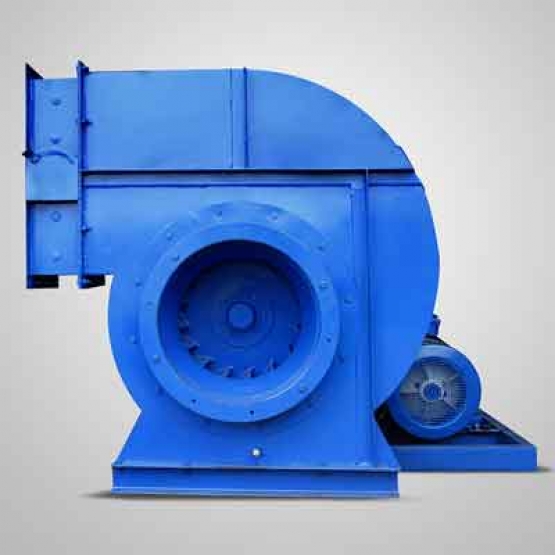

Medium Pressure Centrifugal Fan

MEDIUM PRESSURE AT MEDIUM AIR VOLUME

EASTFORCE Centrifugal Fan type S suitable for air separation by blowing or suctions system. Well suited for all type or ventilation plants and where the air has a relatively high dust.

APPLICATION

Type S Fan are widely applicable for palm kernel recovery plant for material separation as well as pneumatic transport.

DESIGN

The S Fan has 6 standard sizes with impeller diameter from 500mm to 1000mm. All sizes can be furnished on order with 16 types of discharge position either clockwise or anti clockwise. It has "S" shaped backward curve impeller blade, welded construction and designed for relatively high speed.

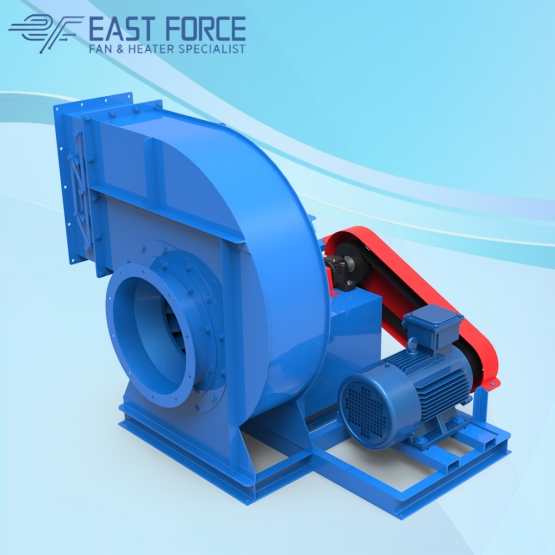

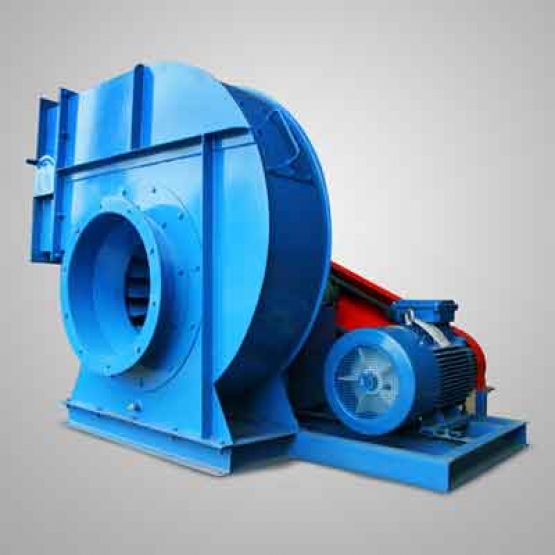

All sizes can be supplied for direct coupling to motor shaft of for V belt drive using heavy duty Plummer block bearings. Finished with 2 coats of anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring vibrationless operation. Standard Fan shall have Fan Inlet Flange.

OPTIONS

Anti Vibration Mountings, Special Design for hot air Fan Outlet Multivane Damper
