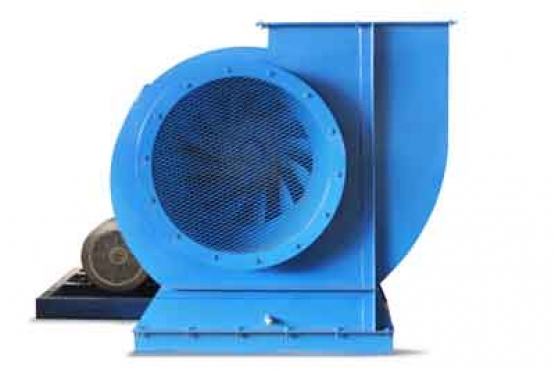

Low Pressure Centrifugal Fan

LOW PRESSURE AT HIGH AIR VOLUME

EASTFORCE Centrifugal Fan Type L suitable for commercial ventilation and air conditioning. The fans have been designed with high efficiency and universal installation.

APPLICATION

Type L Fan are widely applicable for palm kernel recovery plant for kernel & nut drying silos as well as aeration fan for kernel bulking silos.

DESIGN

The L Fan has 7 standard sizes with impeller diameter from 315mm to 900mm. All sizes can be furnished on order with the 16 type of discharge position either clockwise or anti clockwise. It has backward curved impeller blade, welded construction and designed for relatively high speed. All sizes can be supplied for direct coupling to motor shaft of for V belt drive using heavy duty Plummer block bearings. Finishes with 2 coats of  anti rust-primer and 1 coat of good quality paints. The rotating parts are statically and dynamically balanced ensuring vibrationless operation. Standard Fan shall have Fan Inlet Flange.

OPTION

Anti Vibration Mountings, Special Design for hot air Fan Outlet Multivane Damper.
